E2V - F (hermetic)

E2V-F*
E2V - F (hermetic)
E2V - F (hermetic) E2V - F (hermetic)

  • Caractéristiques générales

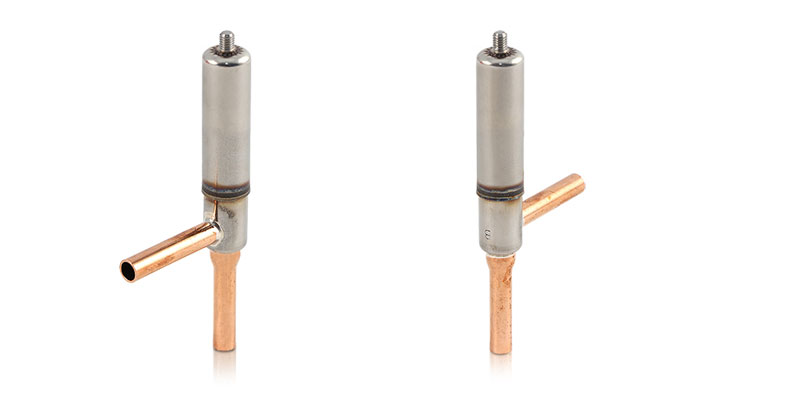

    The CAREL E2V electronic expansion valves for low capacity applications combine high reliability and precise control, guaranteed by the equal percentage characteristic of the movable element and the 15 mm stroke without axial rotation.
    The wide range available can cover all applications that require cooling capacities up to 40 kW. The possibility of operation with fluid flow in both directions is especially useful when the valve is used for heat pump applications, moreover simplifying refrigerant circuit layout and reducing installation costs. Fitted on all sizes, the Teflon gasket on the movable element guarantees perfect tightness on closing.
    The E2V-F valve is made using high quality laser welding and premium grade materials, such as AISI 316; these characteristics ensures perfect tightness on closing. The valve is supplied fully assembled and ready for use, to simplify system installation and commissioning and to reduce related costs.


Documentation

Technical

  • Technical Leaflets
    Code Description Langue Date * Version
    Code +050001675

    Description E2V-F - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Langue ENG  FRE  GER  ITA  SPA

    Date 07/02/2022

    Version 1.9

    Code +050001680

    Description E2V-F Unipolar - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Langue ENG  FRE  GER  ITA  SPA

    Date 07/02/2022

    Version 1.9


Images

  • High resolution images
    Code Description Langue Date * Version
    Code PH14LE2302-E2V-f-stator

    Description CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology

    Langue ALL

    Date 11/03/2022

    Version R.0

    Code PH17LE2302-E2V-f

    Description CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology

    Langue ALL

    Date 11/03/2022

    Version R.0

    Code PH17LE2303-E2V-f-rear

    Description CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology

    Langue ALL

    Date 11/03/2022

    Version R.0
